Nồi hấp tiệt trùng đứng

Giá gốc: 225000000
Giá bán: 225000000

Use

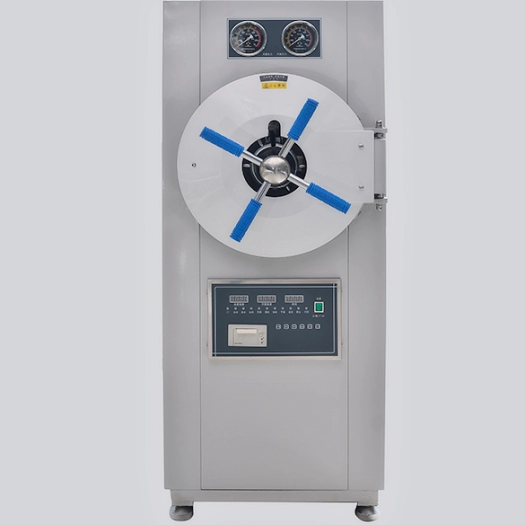

The horizontal autoclave, which adopts the way of gravity exchange to release the cold air from the chamber is more completely to ensure the reliable sterilization. The control system automatically adjusts the steam inlet and outlet according to chamber temperature during sterilizing. This unit is an ideal equipment for clinics, scientific research institutes and other organizations to sterilize surgical instruments, fabric glassed, and the culture media etc.

Characteristics

  • Automatically controlled the sterilizing process, easy to operate.
  • With drying function, suitable for the medical dressing drying.
  • With over-temperature, overpressure auto-protect.
  • The door can’t be open until the pressure in the chamber is reduced to 0.027MPa. And the unit can’t be started on if the door doesn't close well.
  • The safety valve will be open automatically when the inner pressure over 0.24MPa and the steam would be exhausted the water tank.
  • Automatically cut off the power if the water-lack happened, and alarm at the meanwhile.
  • The chamber of the sterilizer is made of stainless steel.
  • With printer.

Technical Data

MODEL

WS-150YDB

WS-200YDB

WS-280YDB

Technical Data

Sterilizing chamber volume

150L

φ440×1000

200L

φ515×1000

280L

φ600×1000

Working pressure

0.22Mpa

Working temperature

134℃

Temperature adjust range

40℃-134℃

Time for sterilization

0-99min

Time for drying

0-99min

Heat average

≤±2℃

Power

9kw/380V 50Hz

9kw/380V 50Hz

12kw/380V 50Hz







Dimensionmm

1400×650×1600

1400×750×1700

1520×910×1900







Exterior package dimensionmm

1560×820×1820

1560×910×1880

1680×1080×2100







G.W/N.W

430/340kg

436/350kg

570/462Kg
